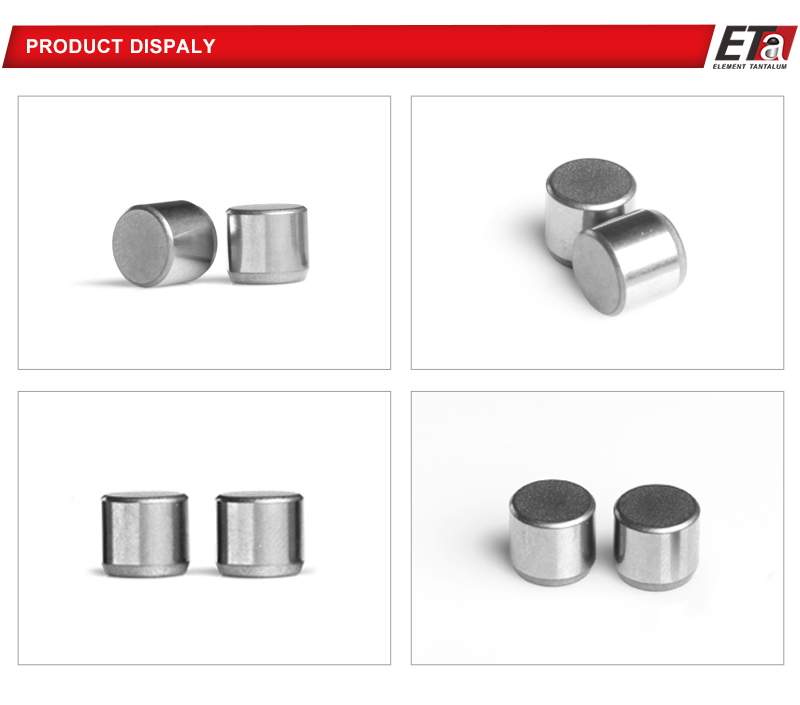

Flat Carbide Buttons

K10 K20 K30 K40 Tungsten Carbide Flat Buttons for Mining & Oil Drilling Bits

【Item】Flat Carbide Buttons

【Grade】JZ05A, YG6, YG8, YG15, etc. (Available upon request)

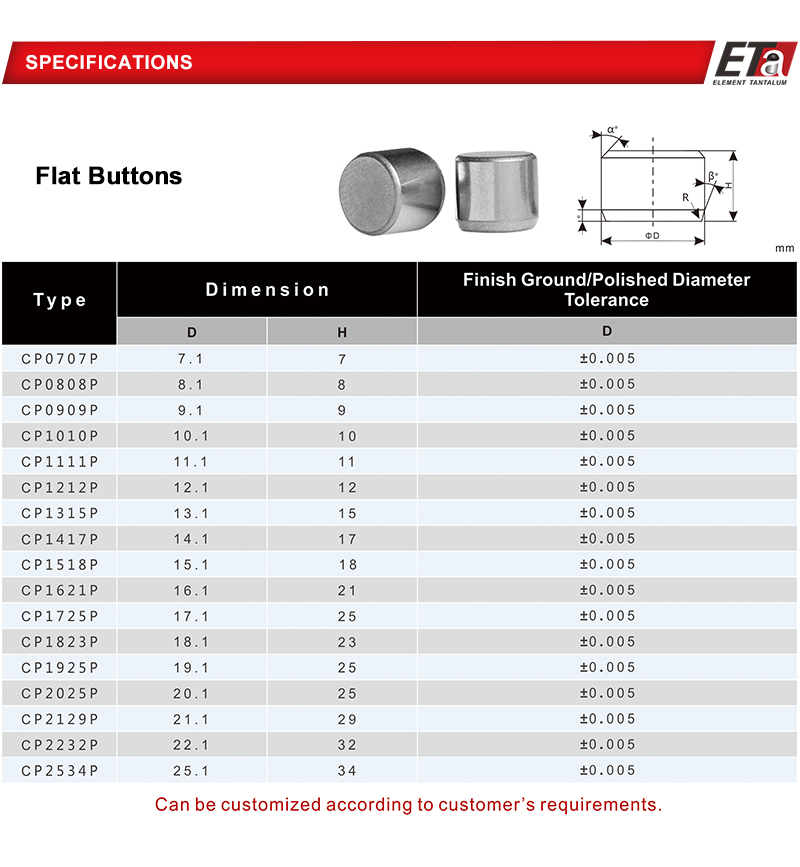

【Specification】Customized sizes available. Standard diameter: 8mm - 20mm. Please contact us for detailed drawings.

【Brand】ETa

【Country of Origin】ZhuZhou.China

【Application】Tricone Drill Bits, Diamond Drill Bits

Submit Inquiry

PRODUCT INFO

High Purity Raw Material: Made from over 99.95% high-purity tungsten carbide powder, ensuring superior strength, hardness, and a longer service life than standard buttons.

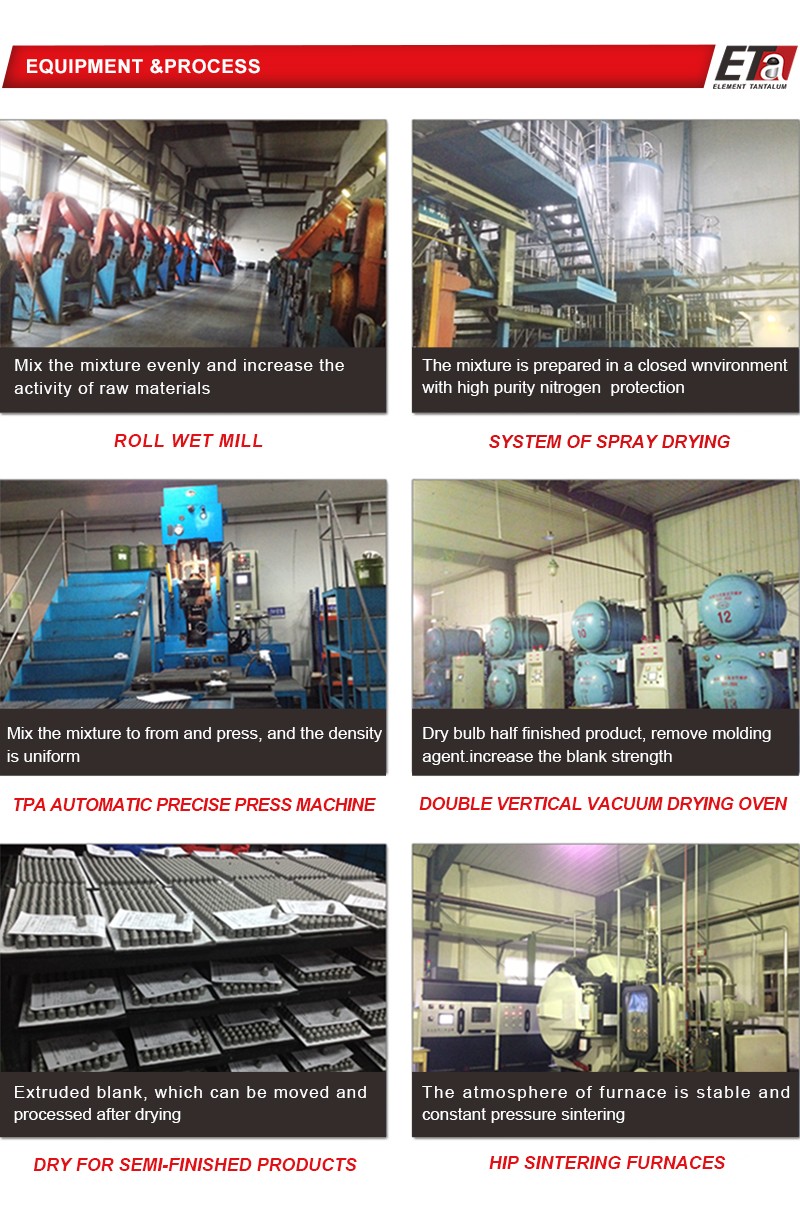

Uniform Density: Manufactured using an isostatic pressing machine, resulting in uniform density and preventing easy breakage.

HIP Sintering Technology: Processed with Hot Isostatic Pressing (HIP) to significantly increase strength and extend service time. The abrasive resistance is increased by 24%.

Precise Grinding & Welding: Precision ground by a centerless grinder for exact measurements. Designed to be welded tightly onto the drill bit without dropping off.

5.Full range of types and specifications available.
